Lightweight structure, simple splicing installation, convenient screen replacement system
Single-Side
Fixed with connectors
NO LED
Each bar length can be customized
6063-T5 Aluminum
0.297KG/M
The LC-ST-25A is an ultra-slim 25mm depth single-sided SEG aluminum extrusion designed for low-profile wall-mounted fabric displays. Crafted from 6063-T5 aluminum alloy with a smooth silver anodized finish, this profile delivers exceptional flatness and corrosion resistance while maintaining a lightweight 0.297kg per meter structure. Its non-LED cavity makes it ideal for indoor backlit-free signage, retail wall graphics, and exhibition display frames where a slim, clean aesthetic is required. The standard 4mm silicone edge groove ensures secure fabric tensioning and seamless tool-free graphic changes. Available in standard 6.1m lengths with custom cutting services, it supports quick on-site assembly with matching corner connectors. This profile is widely used in shopping mall directional signs, corporate lobby displays, and retail store wall branding installations.

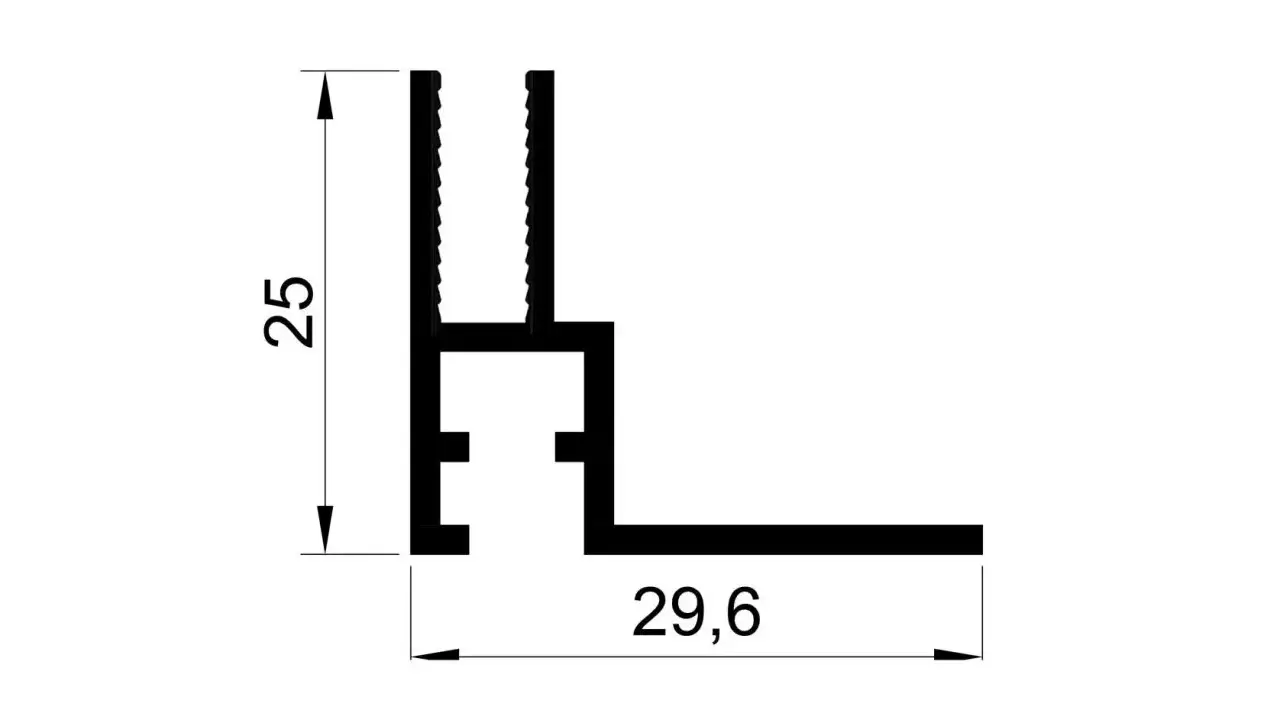

A 25 mm depth makes LC-ST-25A a low-profile single-sided frame: the graphic finishes within a few millimetres of the wall, so the display reads as a printed panel rather than a box. Because the face is single-sided, the back of the frame is closed and mounts straight onto plasterboard, MDF or a metal sub-frame with no cavity behind it.
Ribs sit behind the visible face rather than in the channel, which is why the frame stays flat and the silicone edge seats without pinching. The section is closed at the back, which keeps the display free of light leak and dust; illuminated panels in this depth are handled by the double-sided profiles instead.
We cut to length before packing — 3.5 m, 5 m or 6 m (custom lengths on request) as standard — and bundle each order in a plastic sleeve plus kraft paper so the anodised face arrives without scuffing. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-ST-25A is a single-sided frame, at 25 mm depth, 0.297 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-ST-25A take LED lighting?
A: No — LC-ST-25A is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-ST-25A |
|---|---|
| Depth | 25MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.297KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
