Single-Side
Fixed with connectors
NO LED
Each bar length can be customized
6063-T5 Aluminum
0.317KG/M

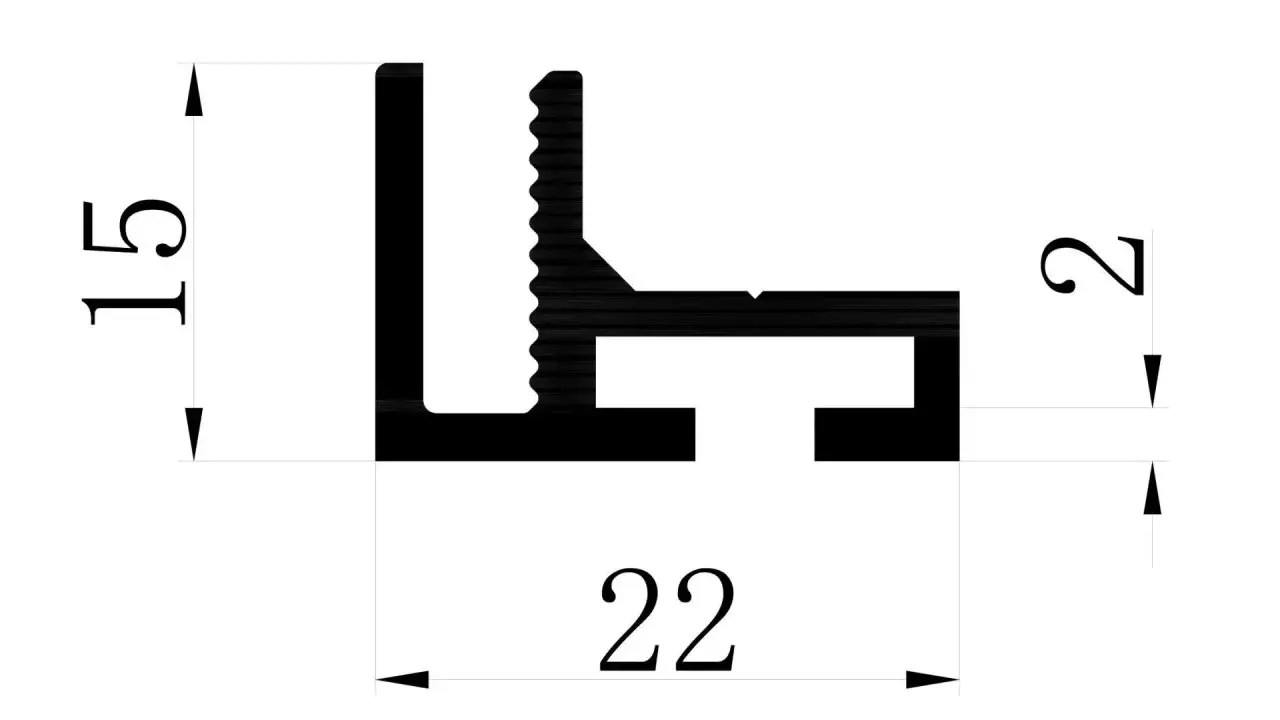

The LC-SR-15A is a 15mm deep single-sided SEG aluminum profile, our standard ultra-slim option for non-illuminated fabric display applications. At just 1.5cm deep, it creates an extremely thin, modern frame that mounts nearly flush to walls, making it perfect for poster replacements, informational signage, retail price displays and interior decorative graphics. Fabricated from 6063-T5 aluminum alloy, it delivers clean, straight lines and reliable durability for indoor commercial use. The precision SEG channel accepts standard silicone-edge fabric or paper-based graphics, producing a taut, flat display surface with minimal frame visibility.
LC-SR-15A covers the narrow end of the single-sided range at 15 mm — shallow enough for a framed poster above a counter, deep enough to hide the SEG bead behind the fabric. One graphic, held on four beads: replacement is a matter of pulling the old fabric out and sliding the new one in.
Extruded in 6063-T5 aluminum with a machined SEG channel; standard finish is silver anodised, with black, white or a RAL powder coat available on request, 0.317 kg per metre. The section is closed at the back, which keeps the display free of light leak and dust; illuminated panels in this depth are handled by the double-sided profiles instead.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request), cut to your drawing with a ±1 mm length tolerance and deburred ends; longer runs are packed as matched bars with the corner set bagged alongside. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-SR-15A is a single-sided frame, at 15 mm depth, 0.317 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-SR-15A take LED lighting?
A: No — LC-SR-15A is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-SR-15A |
|---|---|
| Depth | 15MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.317KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
