Single-Side
Fixed with connectors
NO LED
Each bar length can be customized
6063-T5 Aluminum
0.234KG/M

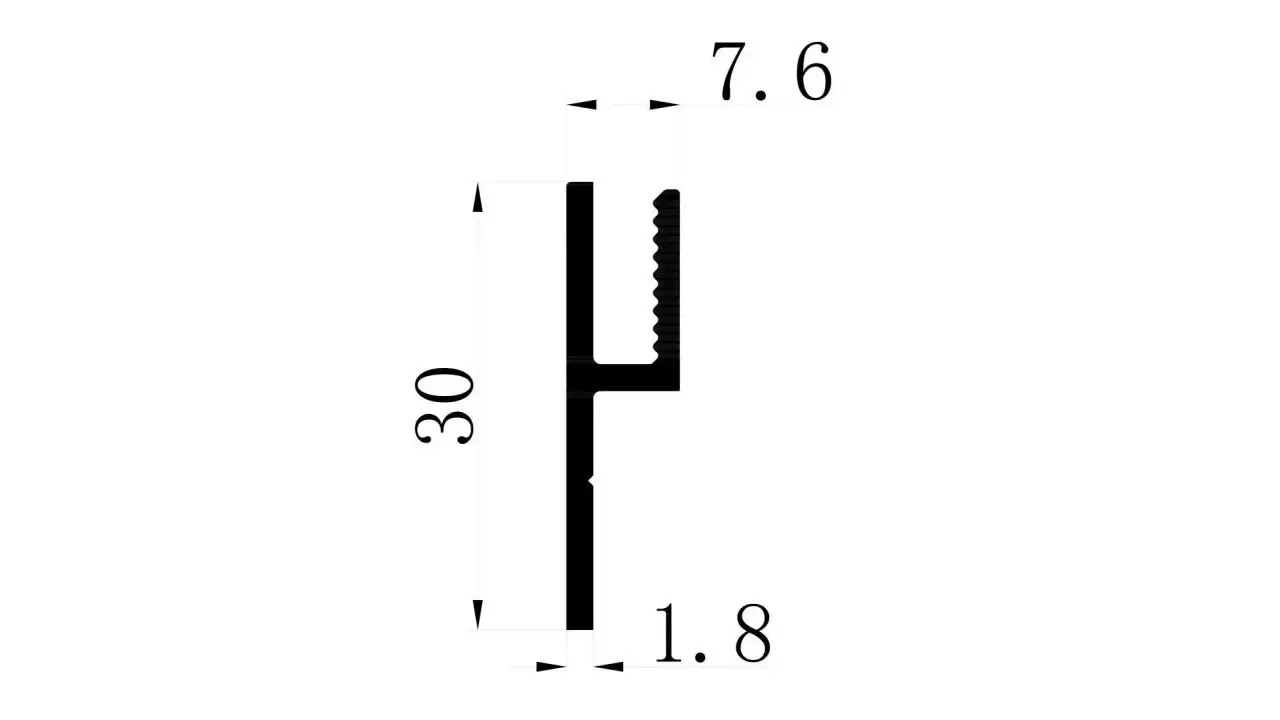

The LC-SR-30A is a 30mm deep single-sided SEG aluminum profile, our thinnest frame option capable of supporting integrated LED lighting for illuminated fabric displays. At just 3cm deep, it creates extremely slim, low-profile lightboxes that mount flush to walls for a clean, modern look perfect for contemporary commercial interiors. It is optimized for edge-lit LED configurations that deliver smooth, even graphic illumination without the depth required for full backlit systems. Fabricated from high-quality 6063-T5 aluminum, it combines lightweight construction with reliable structural rigidity for small to medium format displays. Ideal for reception signage, menu boards, promotional panels and wayfinding applications.
A 30 mm depth makes LC-SR-30A a low-profile single-sided frame: the graphic finishes within a few millimetres of the wall, so the display reads as a printed panel rather than a box. One face, one graphic: there is no second panel, diffuser or light cavity, which is why this profile is the cheapest way to hold a silicone-edge fabric taut on a flat wall.
Ribs sit behind the visible face rather than in the channel, which is why the frame stays flat and the silicone edge seats without pinching. Because there is no cavity, the profile also suits double-mounting on a partition where access from behind is impossible.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request), cut to your drawing with a ±1 mm length tolerance and deburred ends; longer runs are packed as matched bars with the corner set bagged alongside. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-SR-30A is a single-sided frame, at 30 mm depth, 0.234 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-SR-30A take LED lighting?
A: No — LC-SR-30A is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-SR-30A |
|---|---|
| Depth | 30MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.234KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
