Double-Side Freestanding
Fixed with connectors
No Light
Each bar length can be customized
6063-T5 Aluminum
0.983KG/M
LC-DR-50A is our classic standard aluminum profile, designed as a universal solution for most conventional advertising lightboxes. Balancing size, weight and structural strength, it fits most mainstream indoor and semi-outdoor signage projects. The uniform extrusion standard ensures good compatibility with our accessories, bringing convenient assembly. It is a cost-effective option for regular store signs, community notices and common commercial lightboxes.

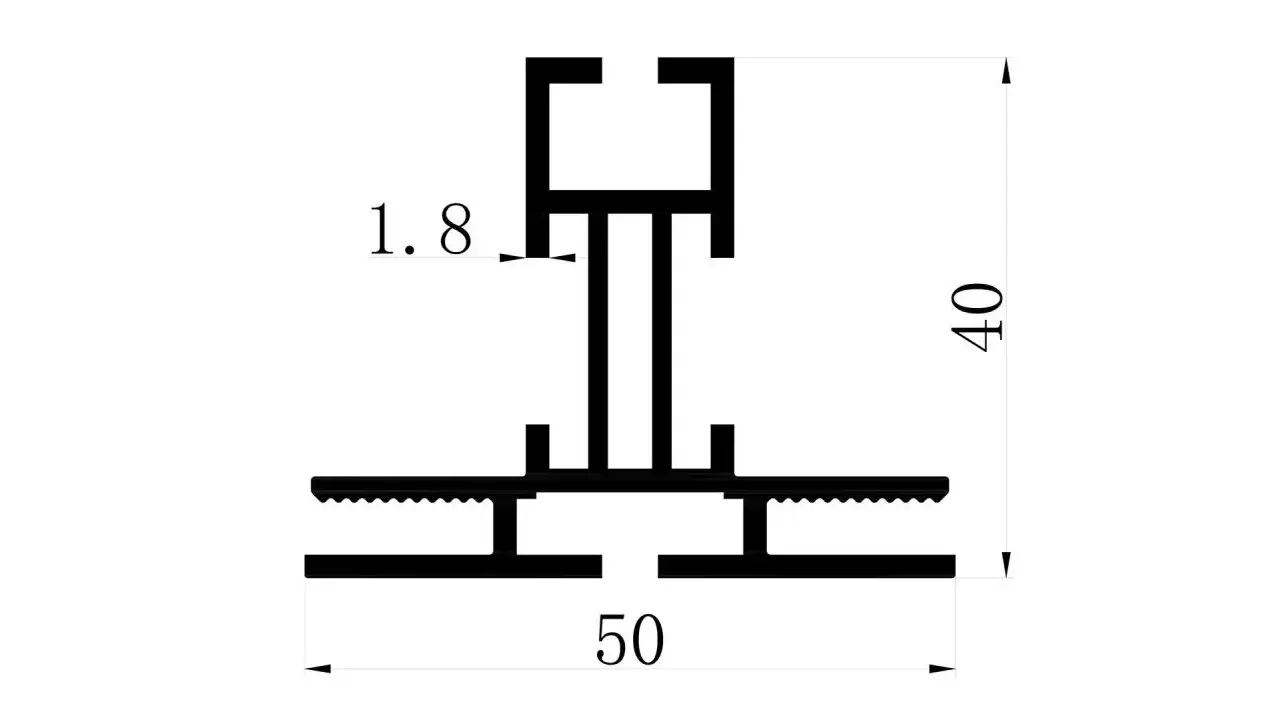

A 50 mm section gives LC-DR-50A the cavity it needs: graphics on both faces, a diffuser between them, and enough depth for an LED row to sit clear of the fabric. Either face can be swapped independently, so a seasonal change never touches the structure behind it.
The section is drawn in 6063-T5 aluminum, 0.983 kg per metre and is rigid enough for a 1.2 m span without a centre mullion. Because the depth is 50 mm, there is room for an edge-lit or back-lit layout, and the diffuser slot keeps the strip off the fabric so hot spots do not print through.
Bars come at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to your cut list; anodised faces are sleeved individually before kraft wrapping so both visible sides arrive unmarked. Stock sections quote in 24 hours and ship in 3–5 days; powder-coated or custom-cut frames take 15–25 days, with a sample corner assembly available first.
LC-DR-50A is a double-sided frame, at 50 mm depth, 0.983 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in non-woven fabric/kraft paper.
Q: Can LC-DR-50A be lit?
A: Yes — the 50 mm cavity takes a standard LED row and diffuser, and strip pitch and driver size are quoted against the panel area.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your cut list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a panel drawing; stock ships in 3–5 days, custom coating and cut lists 15–25 days, and a sample corner assembly can be sent first.
| Item number | LC-DR-50A |
|---|---|
| Depth | 50MM |
| Frame type | Double-sided frame |
| Mounting | Can stand securely with connectors. |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.983KG/M |
| LED | NO |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Non-woven fabric/kraft paper, different packaging will bring price changes |
