Double-Side
Screw fixing
No Light
Each bar length can be customized
6063-T5 Aluminum
0.439KG/M

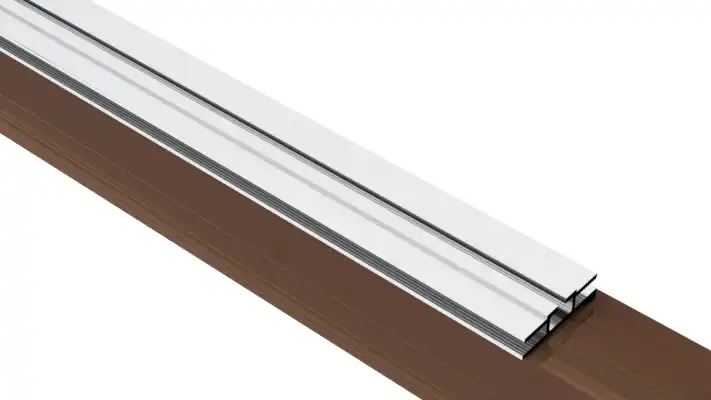

Our LC-DR-40A slim aluminum profile is engineered for compact advertising lightboxes and retail counter displays. With a streamlined structure and lightweight design, this profile is easy to cut, assemble and install for small-scale indoor signage. Made of high-grade aluminum alloy, it features strong oxidation resistance and stable performance for long-term daily use. It is the ideal choice for convenience store signs, shelf displays and mini indoor lightbox frames.
At 40 mm deep, LC-DR-40A is built for displays read from two sides — mall lightboxes, station concourse panels and exhibition walls where visitors walk past both faces. Front and back are independent channels: printed fabric on one face and a different campaign on the other is a normal build, not a special order.
Extruded in 6063-T5 aluminum; corners close with angle brackets, screw fixing, and the profile can be finished in silver, black, white or a custom colour to match a booth scheme. It works with the LED strips and drivers we supply on the same order: strip pitch and wattage are set from the panel depth, and the diffuser sits in its own groove above the strip.
Bars come at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to your cut list; anodised faces are sleeved individually before kraft wrapping so both visible sides arrive unmarked. Stock sections quote in 24 hours and ship in 3–5 days; powder-coated or custom-cut frames take 15–25 days, with a sample corner assembly available first.
LC-DR-40A is a double-sided frame, at 40 mm depth, 0.439 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in non-woven fabric/kraft paper.
Q: Can LC-DR-40A be lit?
A: Yes — the 40 mm cavity takes a standard LED row and diffuser, and strip pitch and driver size are quoted against the panel area.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your cut list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a panel drawing; stock ships in 3–5 days, custom coating and cut lists 15–25 days, and a sample corner assembly can be sent first.
| Item number | LC-DR-40A |
|---|---|
| Depth | 40MM |
| Frame type | Double-sided frame |
| Mounting | Screw fixing |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.439KG/M |
| LED | NO |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Non-woven fabric/kraft paper, different packaging will bring price changes |
