Double-Side Freestanding
Screw fixing
LED supported
Each bar length can be customized
6063-T5 Aluminum
0.883KG/M
LC-DR-80A large-size aluminum profile is tailored for large indoor billboards and exhibition hall display frames. With super strong structural rigidity, it can support oversized lightbox panels without bending or shaking. Standard splicing ports enable quick assembly for large-area advertising projects. Ideal for exhibition booth backgrounds, mall large billboards and lobby display lightboxes in commercial buildings.
This 80 mm double-sided profile is what we specify for free-standing lightboxes and island booths, because one frame then serves two viewing directions. The two faces share one cavity, which halves the frame count against back-to-back single-sided boxes and keeps the lit surface even on both sides.

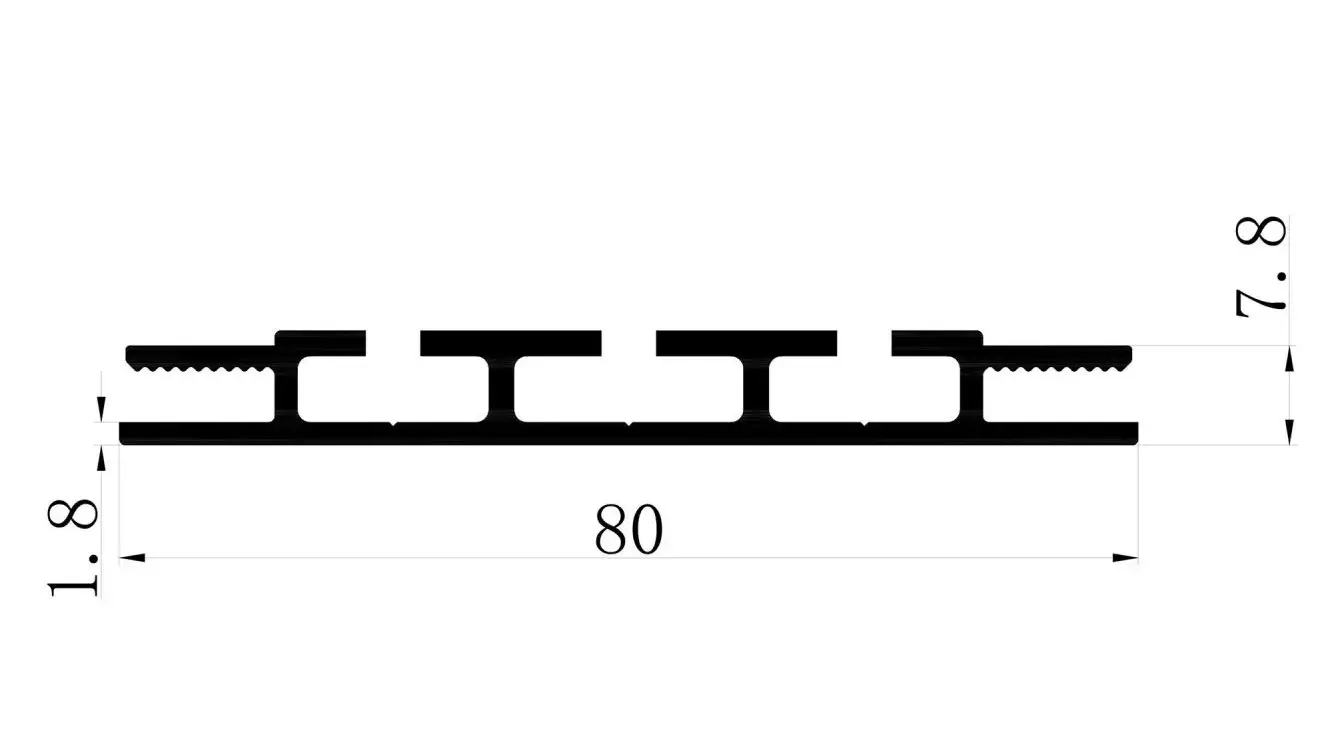

The section is drawn in 6063-T5 aluminum, 0.883 kg per metre and is rigid enough for a 1.2 m span without a centre mullion. Strip pitch, diffuser grade and driver wattage are quoted against the panel area, so the frame and the light are specified together.
Bars come at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to your cut list; anodised faces are sleeved individually before kraft wrapping so both visible sides arrive unmarked. Stock sections quote in 24 hours and ship in 3–5 days; powder-coated or custom-cut frames take 15–25 days, with a sample corner assembly available first.
LC-DR-80A is a double-sided frame, at 80 mm depth, 0.883 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in non-woven fabric/kraft paper.
Q: Can LC-DR-80A be lit?
A: Yes — the 80 mm cavity takes a standard LED row and diffuser, and strip pitch and driver size are quoted against the panel area.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your cut list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a panel drawing; stock ships in 3–5 days, custom coating and cut lists 15–25 days, and a sample corner assembly can be sent first.
| Item number | LC-DR-80A |
|---|---|
| Depth | 80MM |
| Frame type | Double-sided frame |
| Mounting | Screw fixing |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.883KG/M |
| LED | LED supported |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Non-woven fabric/kraft paper, different packaging will bring price changes |
