Double-Side Freestanding
Fixed with connectors
LED Supported
Each bar length can be customized
6063-T5 Aluminum
1.29KG/M

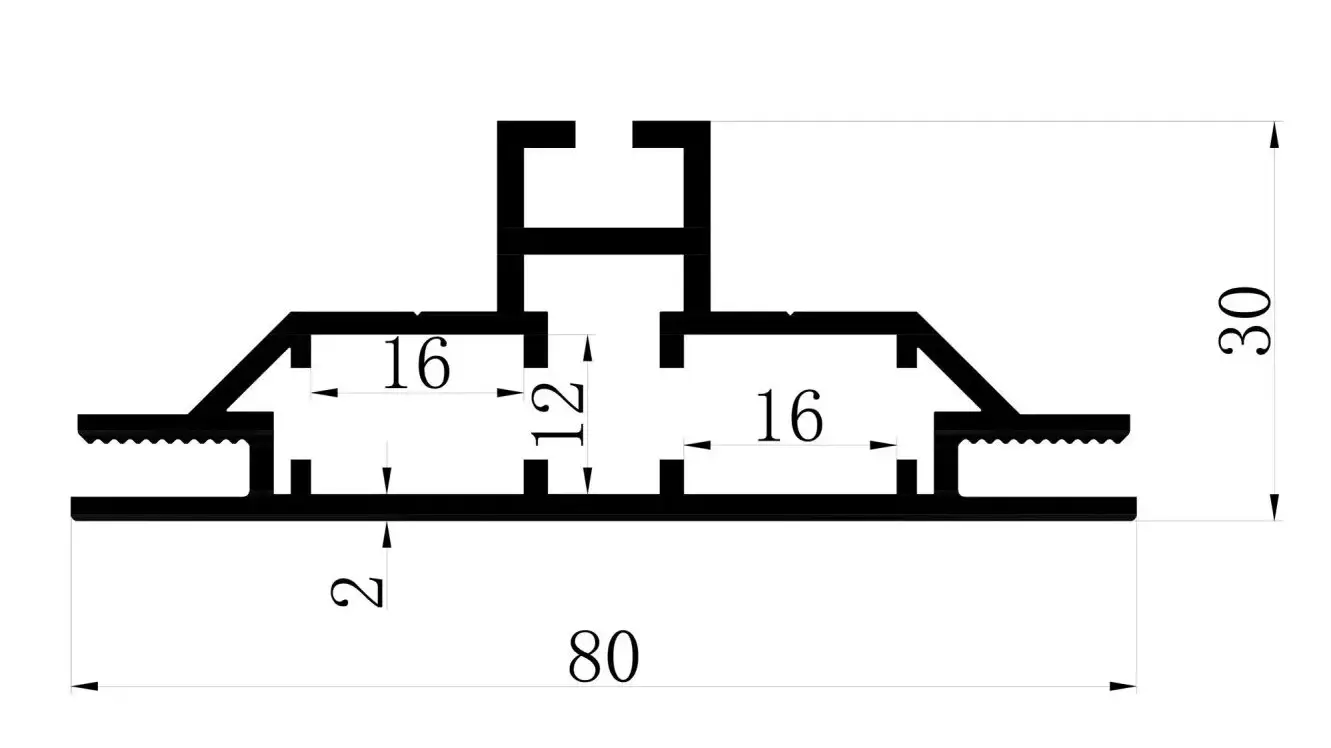

LC-DR-80B ultra-stable aluminum profile focuses on long-span frame applications for extra-large lightboxes. The optimized internal rib structure greatly enhances overall toughness, adapting to long-distance suspension and large-area layout. All production processes follow strict industrial standards, with smooth surface and uniform oxide layer. Mainly used for shopping mall atrium large advertisements, convention center display frames and big indoor exhibition signs.
In a 80 mm build, LC-DR-80B leaves room for a diffuser and an LED row without making the box look heavy from the street. A single frame carries two printed faces, which also means one set of connectors and one anchor pattern instead of two.
Extruded in 6063-T5 aluminum; corners close with angle brackets, free-standing (can stand securely with connectors), and the profile can be finished in silver, black, white or a custom colour to match a booth scheme. Strip pitch, diffuser grade and driver wattage are quoted against the panel area, so the frame and the light are specified together.
Bars come at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to your cut list; anodised faces are sleeved individually before kraft wrapping so both visible sides arrive unmarked. Stock sections quote in 24 hours and ship in 3–5 days; powder-coated or custom-cut frames take 15–25 days, with a sample corner assembly available first.
LC-DR-80B is a double-sided frame, at 80 mm depth, 1.29 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in non-woven fabric/kraft paper.
Q: Can LC-DR-80B be lit?
A: Yes — the 80 mm cavity takes a standard LED row and diffuser, and strip pitch and driver size are quoted against the panel area.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your cut list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a panel drawing; stock ships in 3–5 days, custom coating and cut lists 15–25 days, and a sample corner assembly can be sent first.
| Item number | LC-DR-80B |
|---|---|
| Depth | 80MM |
| Frame type | Double-sided frame |
| Mounting | Free-standing (Can stand securely with connectors) |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 1.29KG/M |
| LED | LED supported |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Non-woven fabric/kraft paper, different packaging will bring price changes |
