Exhibition and TradeShow
Support Pillar
Fixed with Connectors & Lock
Each bar length can be customized
6063-T5 Aluminum
0.648KG/M
LC-P-4016A slim flat narrow exhibition profile is specially developed as thin edging frames for booth backdrops, supporting matched mini three-way lock parts. Its ultra-narrow flat cross-section will not block the printed content on fabric banners, creating a minimalist visual effect. The small three-way lock realizes rapid splicing between border strips, convenient for transportation and on-site assembly. Mainly used for booth background frames, aisle promotional banner stands and brand signage edging frames.
LC-P-4016A is the 16 mm bar behind modular stands: straight runs, right angles and pillars, all from the same stock. The frame goes up with a hex key and comes down the same way, which is how a display ends up in a case instead of a skip.
Extruded in 6063-T5 aluminum, anodised silver by default and available in black, white or a custom RAL when the booth palette calls for it. It is compatible with the SEG fabric frames and the T-slot family, so a stand can mix fabric panels with hard panels on one skeleton.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to the booth drawing; long spans are split into matched pairs so joints land on frame nodes. Quotes come back within 24 hours from a stand drawing; stock lengths ship in 3–5 days and a full frame can be pre-built for photo approval.
LC-P-4016A is a support Pillar, at 16 mm depth, 0.648 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.
Q: Can LC-P-4016A be reused for a different booth?
A: Yes — bars join through corner blocks and connectors, so the same stock re-cuts into a new layout instead of being scrapped.
Q: Can it be cut to my stand drawing?
A: 3.5 m, 5 m or 6 m (custom lengths on request) as standard, cut to your stand plan with a ±1 mm tolerance, and finished in silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: A stand drawing gets a priced kit within 24 hours; stock ships in 3–5 days, coated kits 15–25 days, and a sample joint goes out first.

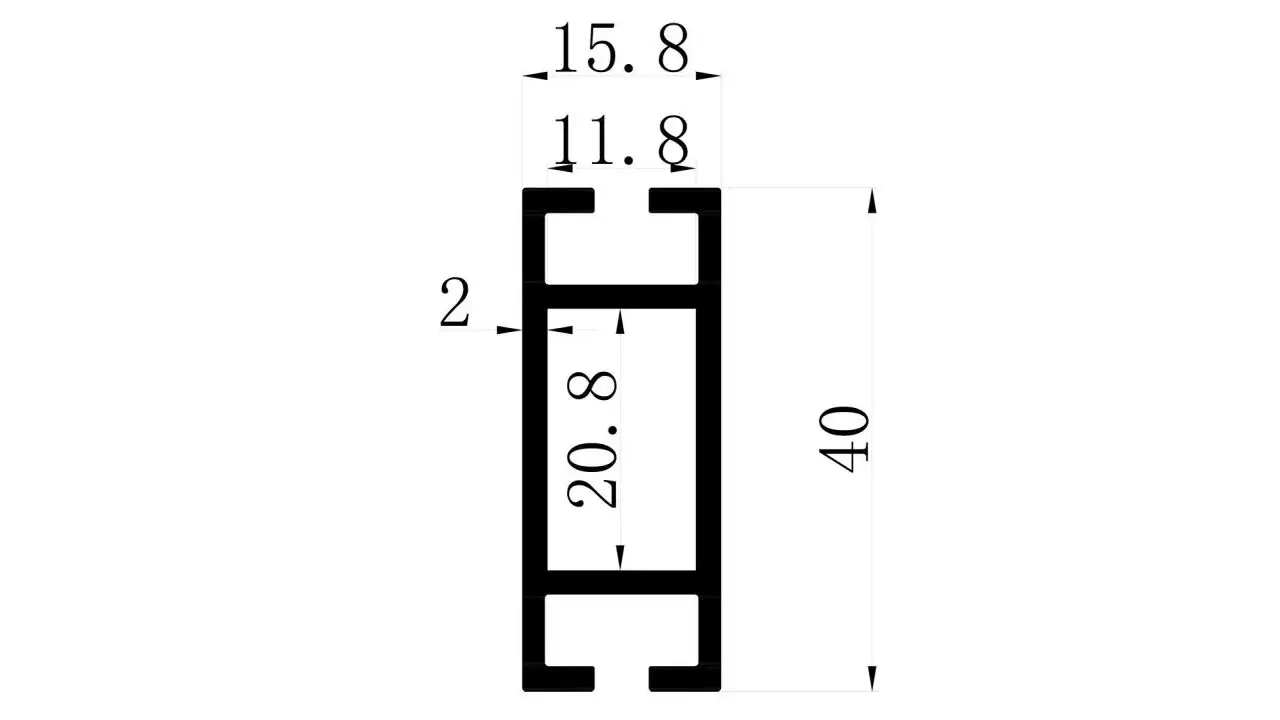

| Item number | LC-P-4016A |
|---|---|
| Depth | 40*16MM |
| Frame type | Support Pillar |
| Mounting | Use lock to secure frame |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.648KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
