Exhibition and TradeShow
Support Pillar
Fixed with Connectors & Lock
Each bar length can be customized
6063-T5 Aluminum
1.241KG/M

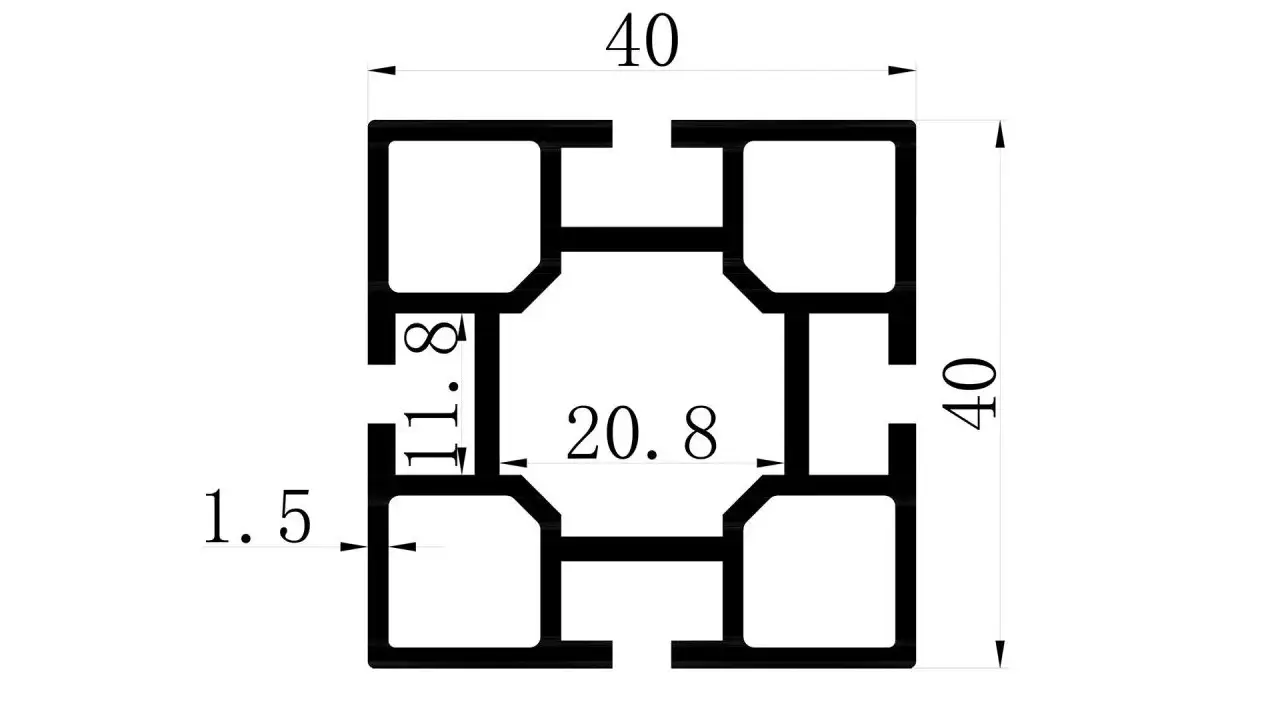

LC-P-4040A is standard square exhibition aluminum profile made for regular standard booth construction. It abandons traditional T-slot design and adopts exclusive three-way lock splicing structure. Installers can finish frame locking in seconds to greatly shorten booth construction time. The uniform wall thickness provides stable supporting force for booth partition walls and display panels. This profile can be disassembled and reused repeatedly, widely applied in mass 3m×3m standard booths, small brand temporary exhibition stands and indoor simple separating frames.
At 40 mm, LC-P-4040A gives a portable system its stiffness without weight — the sort of section that lets one person raise a 3 × 2 m backwall on a show floor. It is meant to travel — light enough to crate, and the joints are designed to be taken apart and re-tightened on site.
Pillar and rail share the same wall thickness, which is what keeps a mixed build square without shimming. It is compatible with the SEG fabric frames and the T-slot family, so a stand can mix fabric panels with hard panels on one skeleton.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to the booth drawing; long spans are split into matched pairs so joints land on frame nodes. Quotes come back within 24 hours from a stand drawing; stock lengths ship in 3–5 days and a full frame can be pre-built for photo approval.
LC-P-4040A is a support Pillar, at 40 mm depth, 1.241 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.
Q: Can LC-P-4040A be reused for a different booth?
A: Yes — bars join through corner blocks and connectors, so the same stock re-cuts into a new layout instead of being scrapped.
Q: Can it be cut to my stand drawing?
A: 3.5 m, 5 m or 6 m (custom lengths on request) as standard, cut to your stand plan with a ±1 mm tolerance, and finished in silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: A stand drawing gets a priced kit within 24 hours; stock ships in 3–5 days, coated kits 15–25 days, and a sample joint goes out first.
| Item number | LC-P-4040A |
|---|---|
| Depth | 40MM |
| Frame type | Support Pillar |
| Mounting | Use lock to secure frame |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 1.241KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
