Exhibition and TradeShow
Support Pillar
Fixed with Connectors & Lock
Each bar length can be customized
6063-T5 Aluminum
1.291KG/M
LC-P-4040C multi-sided exhibition aluminum profile optimizes the clamping groove structure on four sides, fully matching universal three-way lock accessories. Different from single-sided clamping ordinary profiles, this model can install fabric backdrops, PVC display boards and storage shelves on different sides at one time. The three-way lock can form stable clamping force to prevent panels from falling off during long exhibitions. It is a preferred frame material for customized special booths, independent consultation counters and multi-layer exhibition display walls in large exhibition centers.
LC-P-4040C is a 40 mm exhibition profile: the frame is designed to be assembled, moved and rebuilt, which is what trade stands and portable displays need. It is meant to travel — light enough to crate, and the joints are designed to be taken apart and re-tightened on site.
Extruded in 6063-T5 aluminum, anodised silver by default and available in black, white or a custom RAL when the booth palette calls for it. Corner blocks, base plates and connectors from the same programme close the frame; nothing has to be machined on site beyond cutting bars to length.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request) and are cut to the booth drawing; long spans are split into matched pairs so joints land on frame nodes. Quotes come back within 24 hours from a stand drawing; stock lengths ship in 3–5 days and a full frame can be pre-built for photo approval.

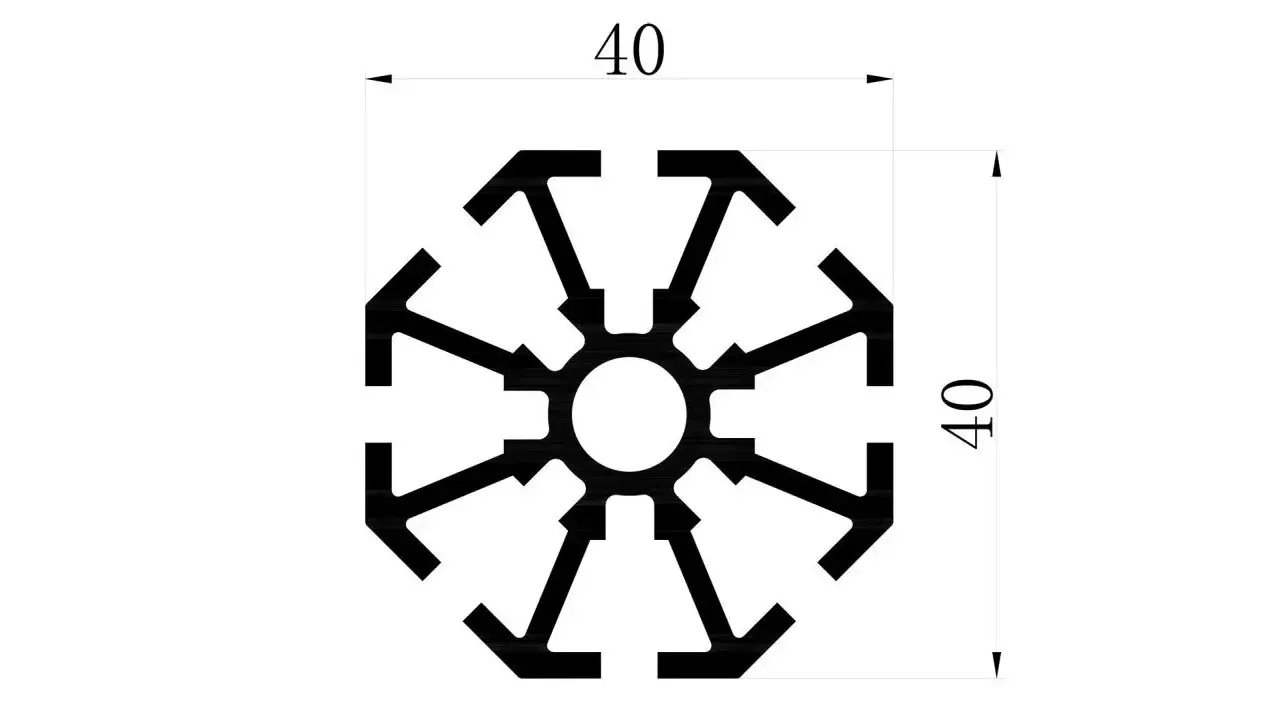

LC-P-4040C is a support Pillar, at 40 mm depth, 1.291 kg per metre, in 6063-T5 aluminum; packed in plastic/kraft paper.
Q: Can LC-P-4040C be reused for a different booth?
A: Yes — bars join through corner blocks and connectors, so the same stock re-cuts into a new layout instead of being scrapped.
Q: Can it be cut to my stand drawing?
A: 3.5 m, 5 m or 6 m (custom lengths on request) as standard, cut to your stand plan with a ±1 mm tolerance, and finished in silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: A stand drawing gets a priced kit within 24 hours; stock ships in 3–5 days, coated kits 15–25 days, and a sample joint goes out first.
| Item number | LC-P-4040C |
|---|---|
| Depth | 40MM |
| Frame type | Support Pillar |
| Mounting | Use lock to secure frame |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 1.291KG/M |
| LED | NO LED |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
