Lightweight structure, simple splicing installation, convenient screen replacement system
Single-Side
Fixed with connectors
LED Supported
Each bar length can be customized
6063-T5 Aluminum
0.42KG/M

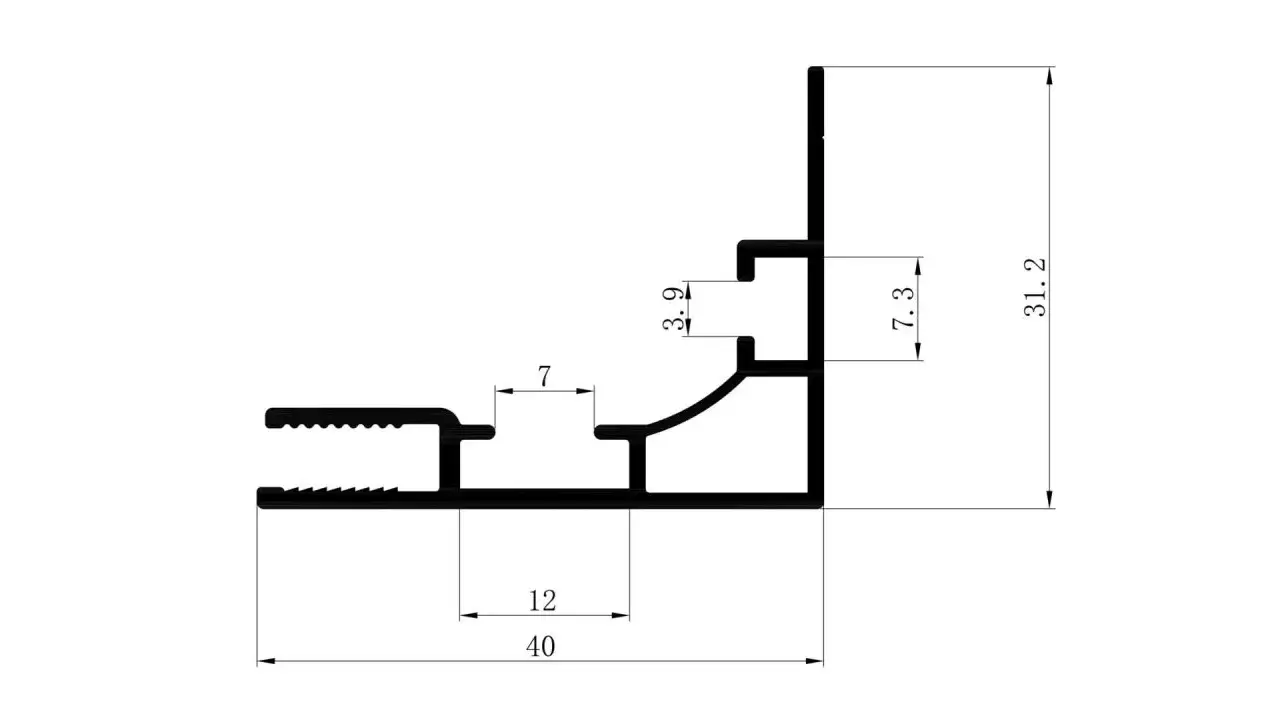

The LC-ST-40A is a 40mm depth single-sided SEG aluminum profile engineered for standard wall-mounted backlit fabric lightboxes. Manufactured from premium 6063-T5 aluminum alloy, it features a dedicated internal LED strip mounting track that supports even light diffusion and consistent brightness across the display surface. Weighing only 0.42kg per meter, it balances structural rigidity with easy handling and installation. The precision-engineered silicone edge groove holds SEG graphics firmly for a perfectly flat, frameless visual effect. This profile is compatible with standard LED strip widths and diffuser panels, making it a versatile choice for retail storefront signage, commercial advertising displays, and indoor brand promotion lightboxes. It supports custom length cutting and is compatible with standard aluminum profile bending and powder coating services.
LC-ST-40A covers the narrow end of the single-sided range at 40 mm — shallow enough for a framed poster above a counter, deep enough to hide the SEG bead behind the fabric. It carries a single silicone-edge graphic, so the specification stays simple — frame, corners, connectors, fabric — with nothing behind the panel to service later.
Extruded in 6063-T5 aluminum with a machined SEG channel; standard finish is silver anodised, with black, white or a RAL powder coat available on request, 0.42 kg per metre. Corner pieces and connectors from the same family close the frame with a friction fit, so a 1 × 2 m panel assembles on site with an Allen key and no welding.
We cut to length before packing — 3.5 m, 5 m or 6 m (custom lengths on request) as standard — and bundle each order in a plastic sleeve plus kraft paper so the anodised face arrives without scuffing. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-ST-40A is a single-sided frame, at 40 mm depth, 0.42 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-ST-40A take LED lighting?
A: No — LC-ST-40A is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-ST-40A |
|---|---|
| Depth | 40MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.42KG/M |
| LED | LED Supported |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
