Single-Side
Fixed with connectors
LED Supported
Each bar length can be customized
6063-T5 Aluminum
1.593KG/M

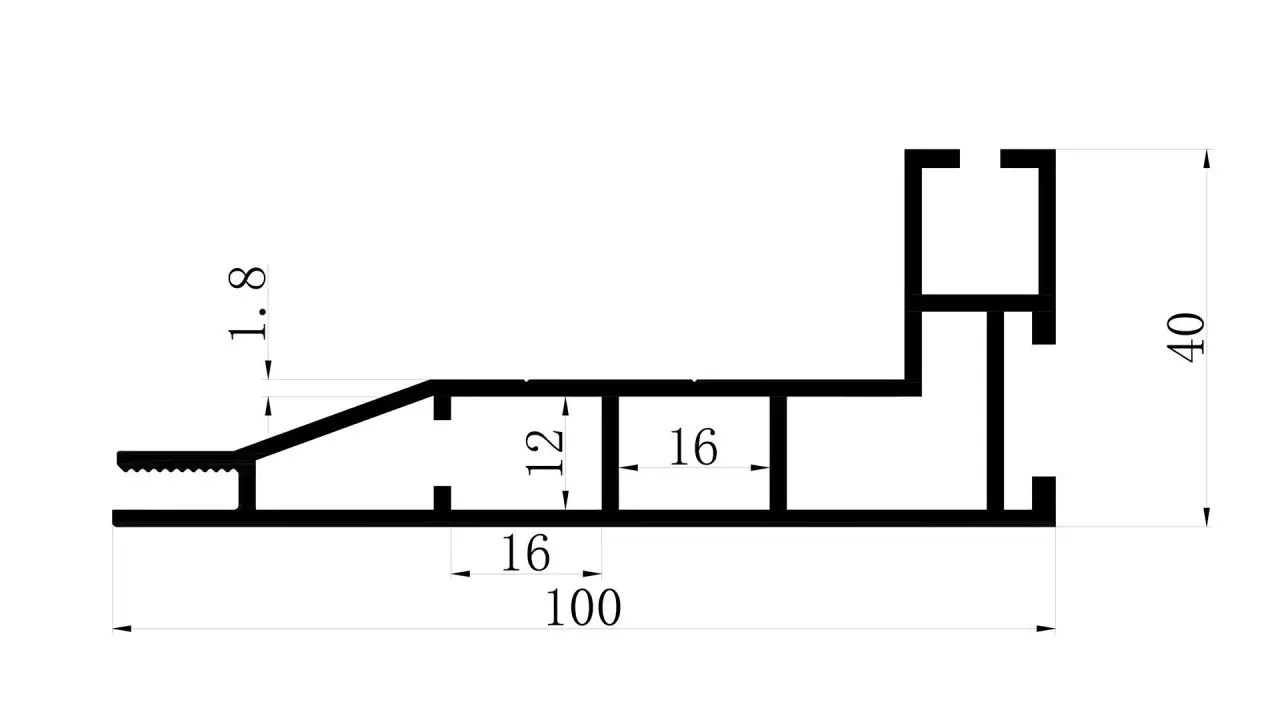

The LC-SR-100A is a widely versatile 100mm deep single-sided SEG aluminum profile optimized for mid-to-large backlit fabric lightboxes. Its 100mm internal depth provides ample space for standard LED strip lighting and diffusion layers, producing smooth, consistent illumination ideal for retail point-of-purchase displays, office lobby signage and trade show exhibit walls. Fabricated from premium 6063-T5 aluminum alloy, it balances lightweight handling with reliable structural strength for both permanent wall-mounted installations and temporary event setups. The integrated SEG channel accepts standard silicone-edge graphics, enabling fast, tool-free graphic changes and a clean, borderless finished look. All bars can be cut to custom lengths and paired with matching corner connectors and mounting accessories.
At 100 mm deep, LC-SR-100A sits in the slimmest bracket of the range — the profile we quote for poster swaps in retail aisles, lift-lobby panels and office wayfinding, where a 2 cm shadow line around the graphic is already too much. Because the face is single-sided, the back of the frame is closed and mounts straight onto plasterboard, MDF or a metal sub-frame with no cavity behind it.
Extruded in 6063-T5 aluminum with a machined SEG channel; standard finish is silver anodised, with black, white or a RAL powder coat available on request, 1.593 kg per metre. It is a purely mechanical frame — no LED cavity, no diffuser, no driver — so it pairs with printed fabric or paper graphics and needs no electrical provision at all.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request), cut to your drawing with a ±1 mm length tolerance and deburred ends; longer runs are packed as matched bars with the corner set bagged alongside. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-SR-100A is a single-sided frame, at 100 mm depth, 1.593 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-SR-100A take LED lighting?
A: No — LC-SR-100A is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-SR-100A |
|---|---|
| Depth | 100MM |
| Frame type | Single-sided frame |
| Mounting | Standing/ Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 1.593KG/M |
| LED | LED Supported |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
