Single-Side
Fixed with connectors
LED Supported
Each bar length can be customized
6063-T5 Aluminum
1.327KG/M
The LC-SR-80A is a compact 80mm deep single-sided SEG aluminum extrusion that delivers professional backlit display performance in a space-efficient form factor. At 80mm deep, it comfortably houses edge-lit or direct-lit LED systems to produce bright, uniform illumination for fabric graphics, while maintaining a slimmer overall profile than deeper frame options. Constructed from 6063-T5 aluminum alloy, it offers an excellent strength-to-weight ratio for both permanent wall mounts and portable exhibition kits. The integrated silicone edge groove works with standard SEG fabric to create a flawless, frameless display surface with no visible hardware. Ideal for retail in-store signage, menu boards, corporate interior displays and trade show booth panels.
A 80 mm depth makes LC-SR-80A a low-profile single-sided frame: the graphic finishes within a few millimetres of the wall, so the display reads as a printed panel rather than a box. Nothing sits behind the panel, so the frame can be fixed with a single row of anchors along each bar.

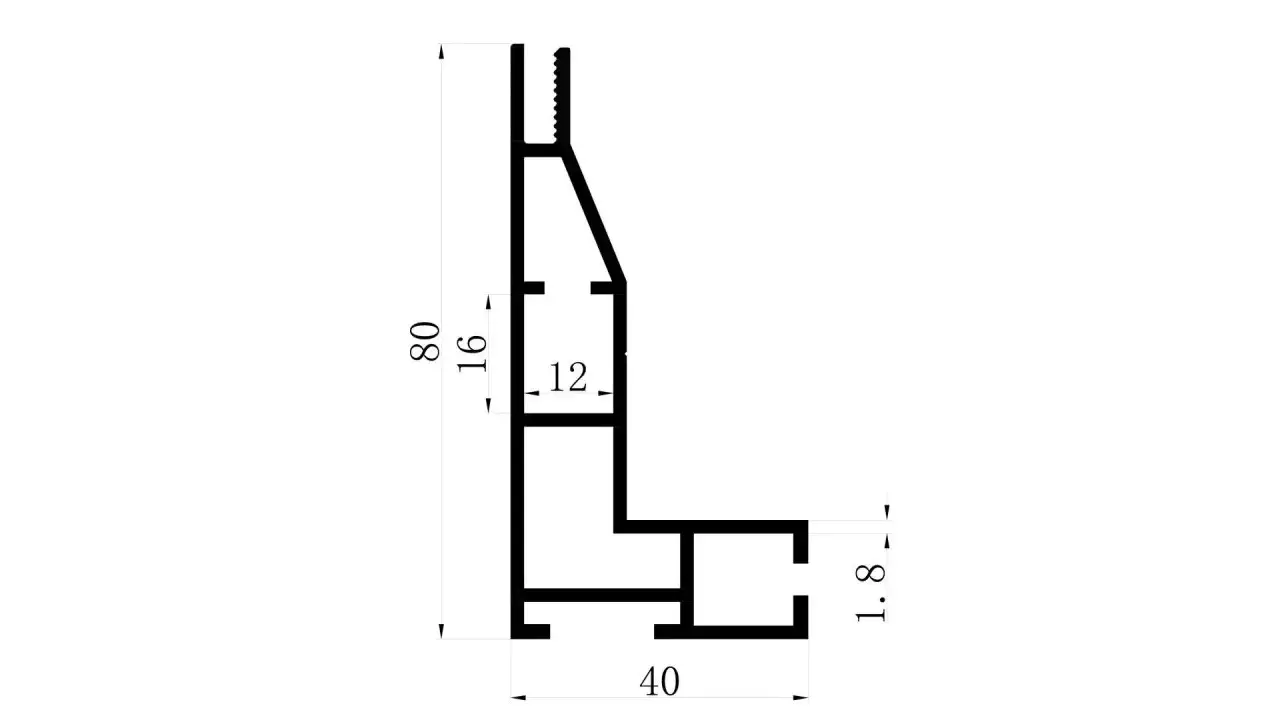

The section is drawn in 6063-T5 aluminum, 1.327 kg per metre; the visible face is flat with a satin finish, and the groove holds a 2–3 mm silicone edge without visible seams at the corners. It is a purely mechanical frame — no LED cavity, no diffuser, no driver — so it pairs with printed fabric or paper graphics and needs no electrical provision at all.
We cut to length before packing — 3.5 m, 5 m or 6 m (custom lengths on request) as standard — and bundle each order in a plastic sleeve plus kraft paper so the anodised face arrives without scuffing. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-SR-80A is a single-sided frame, at 80 mm depth, 1.327 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-SR-80A take LED lighting?
A: No — LC-SR-80A is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-SR-80A |
|---|---|
| Depth | 80MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 1.327KG/M |
| LED | LED Supported |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
