Single-Side
Fixed with connectors
LED Supported
Each bar length can be customized
6063-T5 Aluminum
1.788KG/M
The LC-SR-120A is a heavy-gauge single-sided SEG aluminum extrusion built for large-format backlit lightbox installations. With a substantial 120mm depth, it accommodates high-power direct-lit LED arrays and diffuser panels to deliver uniform, hotspot-free illumination across multi-meter fabric graphics. Crafted from 6063-T5 aluminum alloy, it provides exceptional structural rigidity for floor-to-ceiling display walls, outdoor-facing storefront signage and flagship exhibition feature walls. Its precision-engineered SEG groove locks silicone-edged textiles taut for a seamless, frameless visual finish. Profile bars are available in 3.5m, 5m and 6m stock lengths, or fully custom-cut to project specifications, with sandblasted anodized or powder coated surface finishes for long-lasting commercial performance.
Where a wall already carries a lot of signage, 120 mm is the depth that keeps LC-SR-120A from stacking up: the frame reads as a border, not as a box. One graphic, held on four beads: replacement is a matter of pulling the old fabric out and sliding the new one in.
Extruded in 6063-T5 aluminum, anodised and cut on our own lines, 1.788 kg per metre; wall thickness and ribbing are sized so the section stays true over a 3–5 m span when the fabric is tensioned. It is a purely mechanical frame — no LED cavity, no diffuser, no driver — so it pairs with printed fabric or paper graphics and needs no electrical provision at all.
Bars ship at 3.5 m, 5 m or 6 m (custom lengths on request), cut to your drawing with a ±1 mm length tolerance and deburred ends; longer runs are packed as matched bars with the corner set bagged alongside. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-SR-120A is a single-sided frame, at 120 mm depth, 1.788 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-SR-120A take LED lighting?
A: No — LC-SR-120A is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.

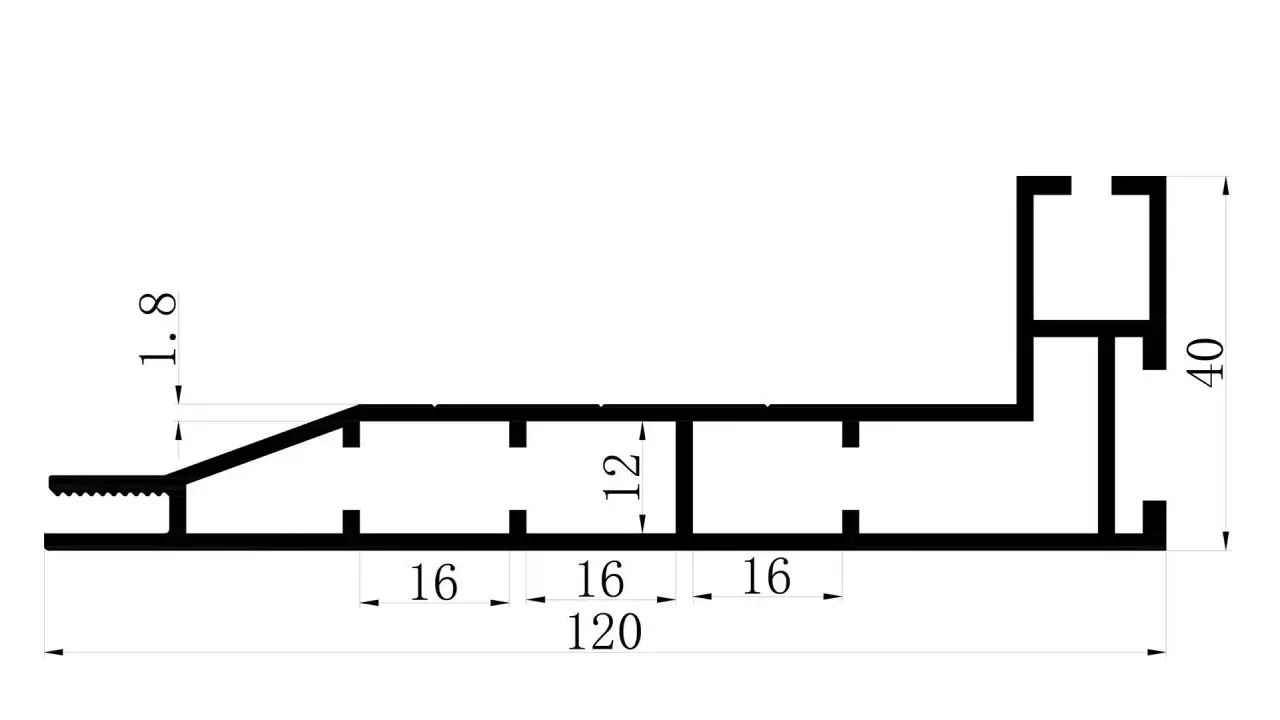

| Item number | LC-SR-120A |
|---|---|
| Depth | 120MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 1.788KG/M |
| LED | LED Supported |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
