Lightweight structure, simple splicing installation, convenient screen replacement system
Single-Side
Fixed with connectors
LED Supported
Each bar length can be customized
6063-T5 Aluminum
0.404KG/M

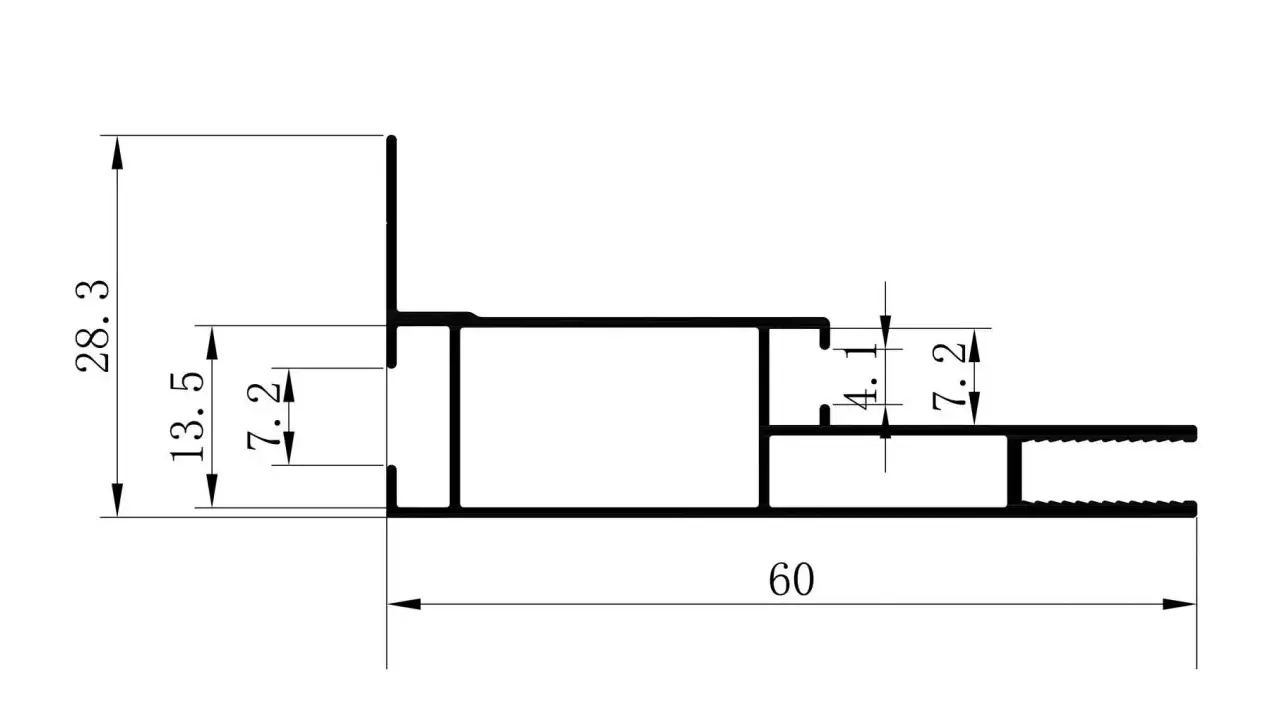

The LC-ST-60B is a 60mm depth lightweight single-sided SEG aluminum profile optimized for cost-effective large-scale lightbox installations. Weighing just 0.404kg per meter, it reduces material and shipping costs while maintaining reliable structural performance for standard wall-mounted displays. Manufactured from 6063-T5 aluminum alloy with a silver anodized surface, it delivers good corrosion resistance and a clean professional appearance. Its internal cavity is designed to accommodate standard LED strips and diffuser panels, providing uniform backlighting for SEG fabric graphics. This profile is an economical choice for chain store retail signage, commercial building interior displays, and bulk order exhibition projects. It is supplied in standard 6.1m lengths and can be custom cut to precise project dimensions for efficient on-site assembly.
Where a wall already carries a lot of signage, 60 mm is the depth that keeps LC-ST-60B from stacking up: the frame reads as a border, not as a box. One graphic, held on four beads: replacement is a matter of pulling the old fabric out and sliding the new one in.
Ribs sit behind the visible face rather than in the channel, which is why the frame stays flat and the silicone edge seats without pinching. Corner pieces and connectors from the same family close the frame with a friction fit, so a 1 × 2 m panel assembles on site with an Allen key and no welding.
We cut to length before packing — 3.5 m, 5 m or 6 m (custom lengths on request) as standard — and bundle each order in a plastic sleeve plus kraft paper so the anodised face arrives without scuffing. Stock sections are quoted within 24 hours; custom colours and cut lists run 15–25 days, and a sample length can be sent before you commit to the full frame.
LC-ST-60B is a single-sided frame, at 60 mm depth, 0.404 kg per metre, in 6063-T5 aluminum; bars come at 3.5 m, 5 m or 6 m (custom lengths on request), packed in plastic/kraft paper.
Q: Does LC-ST-60B take LED lighting?
A: No — LC-ST-60B is a non-illuminated SEG frame. For a lit panel, step up to a double-sided profile with an LED row and diffuser.
Q: What lengths and colours can I order?
A: 3.5 m, 5 m or 6 m (custom lengths on request), cut to your list; colours are silver, black, white or a custom colour.
Q: How fast is a quote and a sample?
A: Quote within 24 hours of a drawing or size list; stock ships in 3–5 days, custom coating 15–25 days, and sample pieces go out before bulk.
| Item number | LC-ST-60B |
|---|---|
| Depth | 60MM |
| Frame type | Single-sided frame |
| Mounting | Mounted on the wall |
| Material | 6063-T5 Aluminum |
| Colors | SILVER/BLACK/WHITE/Color of your choice |
| Weight | 0.404KG/M |
| LED | LED Supported |
| Bar length | 3.5M/5M/6M/Each bar length can be customized |
| Package | Plastic/kraft paper, different packaging will bring price changes |
